Creating JTextFields and JPasswordField in Java Swings

In this lesson, you will learn.

  • Working with JTextField
  • Constructors and Methods of JTextField
  • Examples



What is a JTextField

  1. JTextField is a component in Java Swing that allows for single-line text input.
  2. It is a part of the javax.swing package and extends JTextComponent, providing a user interface for entering and editing text.



Constructors of JTextField

Constructor Description
JTextField() Creates a new JTextField with a default width of 0 columns.
JTextField(int columns) Creates a new JTextField with the specified number of columns.
JTextField(String text) Creates a new JTextField initialized with the specified text.
JTextField(String text, int columns) Creates a new JTextField initialized with the specified text and columns.



Creating a JTextField

Example-1: Creating a JTextFields on JFrame

package jtextfields;

import javax.swing.*;
import javax.swing.text.Document;
import javax.swing.text.PlainDocument;
import java.awt.*;

public class JTextFieldExample extends JFrame {
	JTextField textField1,textField2,textField3,textField4;

	public JTextFieldExample() {
		 // Create a JFrame to hold everything
        setTitle("JTextField Example");
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setSize(400, 300);
        setLayout(null);

        // Create JTextField using default constructor
        textField1 = new JTextField();
        textField1.setText("Default Constructor");
        textField1.setBounds(50, 20, 120, 30);
        add(textField1);

        // Create JTextField with specified columns
        textField2 = new JTextField(10);
        textField2.setText("10 Columns");
        textField2.setBounds(50, 60, 120, 30);
        add(textField2);

        // Create JTextField with specified text
        textField3 = new JTextField("Specified Text");
        textField3.setBounds(50, 100, 120, 30);
        add(textField3);

        // Create JTextField with specified text and columns
        textField4 = new JTextField("Text and Columns", 15);
        textField4.setBounds(50, 140, 120, 30);
        add(textField4);

        // Manipulate JTextField methods
        textField1.setColumns(20);
        textField2.setHorizontalAlignment(JTextField.CENTER);
        textField3.setEditable(false);
        textField4.setMargin(new Insets(5, 5, 5, 5));

        // Display the frame
        setVisible(true);
	}

    public static void main(String[] args) {
       new JTextFieldExample();
    }
}

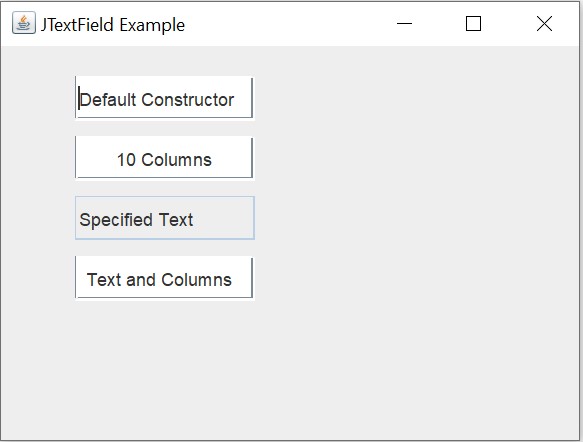

Output



Summary of Common Methods in JTextField

Method Description
String getText() Returns the text contained in this TextComponent.
void setText(String t) Sets the text of this TextComponent to the specified text.
int getColumns() Returns the number of columns in this TextComponent.
void setColumns(int columns) Sets the number of columns in this TextComponent.
int getHorizontalAlignment() Returns the horizontal alignment of the text.
void setHorizontalAlignment(int alignment) Sets the horizontal alignment of the text. Possible values are JTextField.LEFT, JTextField.CENTER, JTextField.RIGHT, JTextField.LEADING, and JTextField.TRAILING.
void setEditable(boolean b) Sets the specified boolean to determine whether the TextComponent is editable.
boolean isEditable() Returns true if the TextComponent is editable, otherwise false.
void setDocument(Document doc) Associates the editor with a text document.
Document getDocument() Returns the Document model associated with this TextComponent.
void setMargin(Insets m) Sets the margin between the text field’s border and its text.
Insets getMargin() Returns the margin between the text field’s border and its text.








End of the lesson….enjoy learning
